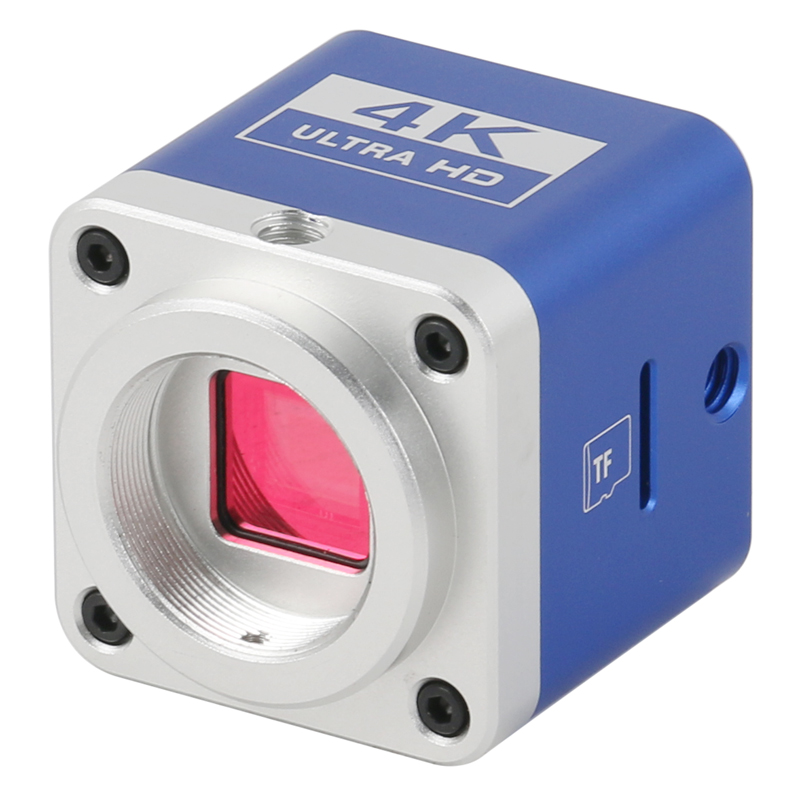

8.3MP 4K HDMI Type-c 工业相机
【简述】:
【系列】:工业相机
Camera Function:
Adopt Imported Sony IMX678 Sensor;
Adopt 1/1.8 inch image Sensor;
HDMI 4K/30FPS 1080P/60FPS image output;
Use TF card to store videos and pictures;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
1-4X Electronics Digital Zoom;
Supports multiple languages, Chinese, English;
Provide center crosshair display on/off;
Aluminum alloy casing processed by CNC precision milling technology;

Camera Parameter:
Sensor Type:1/1.8" Sony IMX678 Color CMOS
Image Resolution:8.3MP
Video Interface:HDMI Type-c TF Output
Material:Aluminum Alloy
Effective Pixel:UHD
HDMI Video Resolution Output:4K/3840*2160@30FPS 1920*1080@60FPS
Video Output Mode:PC or HDMI Monitor
Pixel Size:2.0μm*2.0μm
Exposure Time:0-33MS
White Balance:Automatic/Manual/One Button
Video Format:AVI
Image Format:JPG
TF Card Support Format:FAT32
TF Card Support Maximum Storage:128G
Language:Chinese,English
Digital Zoom:1-4X
Exposure Compensation:+0.0 -1/3 -2/3 -1.0 -5/3 -2.0 +2.0 +5/3 +1.0 +2/3 +1/3
Picture and Video Storage:Support TF Card
Color:Standard,Black & White,Sepia
Mirror Settings:Standard,Horizontal Mirror,Vertical Mirror,Horizontal Mirror and Vertical Mirror
Grid lines:20 Groups Grid Line Selectable
Line Direction:Selectable
Line Color:Selectable
Line Position:Adjustable
Line Width:Adjustable
Line Calibration:5 Groups Data
Scale Unit:6 Options
Center Scale Line:Support
Light Source Frequency:50HZ/60HZ
Image Ratio:16:9,16:10,4:3
Remote Control:Support
Power:5V Type-C Power Supply
Size:45.5*42*42mm
Weight:0.11kg

1. Turn on the DC-5V power supply, connect to the monitor, and wait for the screen to appear on the monitor
2. Tap the main function menu button on the product
3. Press the up and down keys to select the setting function
4. Press OK to confirm the desired function
5. Press the left and right keys to adjust the required parameters
6. Press the main function menu key to return to the setting menu
7. When there is no main function menu on the screen, directly press the right button to take a photo and save the photo to the TF card
8. When there is no main function menu on the screen, first press the left button, then press the right button to record, and then press the right button to stop Video, save the video to TF card
9. When there is no main function menu on the screen, press the left button twice, then press the up and down buttons to preview pictures and videos


Packing including:
1 x Video Microscope Camera
1 x 5V Power Supply
1 x Type-c Cable
1 x HDMI Cable
1 x IR Remote Control
