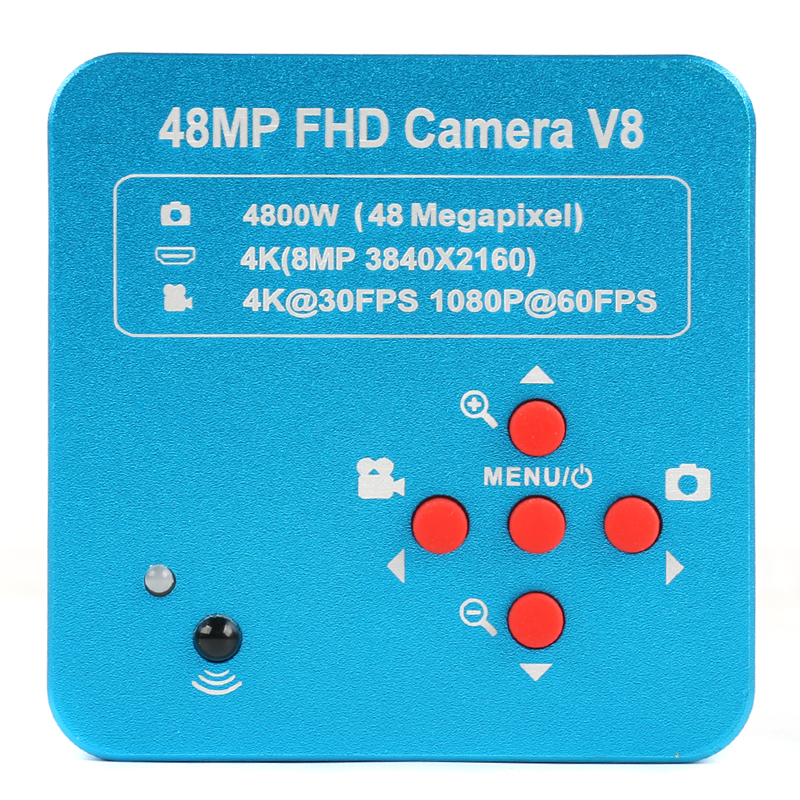

Function:
Adopt Imported Sony sensor;
Adopt 1/2.33 inch image sensor;
HDMI 4K 30 frame image output;
USB driver-free output 1080P 30/Fps image output;
HDMI port 4K, 1080P video recording, 60MP Pictures were taken;
48MP photos, JPG format, photo size ;
1-4X Electronic zoom function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G, adjustable;
Provide 32 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Support TF card storage, up to 128GB;
Support remote control operation, take pictures without shaking and the image will be clearer;
Support Chinese, Traditional Chinese, English, French, German, Spanish, Portuguese, Japanese, Russian, Arabic menu languages;
Aluminum alloy casing processed by CNC precision milling technology;
Note: HDMI port output uses HDMI monitor,USB port uses PC, PC needs to install software, VGA port output uses VGA monitor, TF card interface, the function is to store pictures and videos, U disk interface, the function is to store pictures and videos!
Feature:
Output Interface:HDMI USB two output
Sensor:Sony 1/2.33 Inch CMOS Sensor
Housing:Aluminum Alloy
Pixel Size:1.65um*1.65um
Image Resolution:48MP/4K/1080P/720P(Use TF card)
Video Display:HDMI Monitor or USB PC
Video Record Resolution:4K/3840x2160@30FPS 1080p/1920x1080@60FPS 720p/1280x720@60FPS(Use TF card)
USB2.0(Drivefree) Record Resolution:1920*1080@30FPS/1280*720@30FPS/640*480@30FPS
HDMI Video Resolution:1920*1080@60F/S 3840x2160@30F/S 1280x720@60F/S
HDMI Scale:Support 4:3,16:9,16:10,Screen
Image and Video Storage:Support
Image and Video Playback:Support
Exposure:Auto Exposure and Manual Exposure(AE value set 0-12)
TF Card Flash Drive:MAX 128GB
Digital Zoom:1-4X
Video Format:MP4
Image Format:JPG
Camera Interface Mounting Diameter:25mm
Camera Interface Standard:C Mount
Lens Interface:25mm C/CS mount
White balance:One key white balance,Manual balance
Color:Black and White/Color
Dynamic Range:69dB
S/N Radio:40dB
Scanning Mode:Progressive
Shutter Mode:Electronic Shutter
Negative:Support
Contrast:1-100,Adjustable
Saturation:1-100,Adjustable
Sharpness:1-100,Adjustable
Mirror:Horizontal Mirror and Vertical Mirror
B&W Pictures:Support
Image Freezing:Support
R.G.B Adjustment:Support
Avoid Flicker:50Hz 60Hz
TF Card Formatting:Support
Support Languages:Chinese, Traditional Chinese, English, French, German, Spanish, Portuguese, Japanese, Russian, ArabicGerman, Italian, Japanese, Russian
Remote:Infrared Remote Control
Cross Lines:4 Group ,32 Lines.Can set color& width& position,direction
Crosshair:Can adjust color, line size
Power:DC 12V/1A
Package includes:
1 x Microscope Camera
1 x 12V/1A DC Power Supply(EU/US Adapter)
1 x USB Cable
1 x HDMI Cable
1 x IR Remote Control
1 x 8G TF Card
Adopt Imported Sony sensor;
Adopt 1/2.33 inch image sensor;
HDMI 4K 30 frame image output;
USB driver-free output 1080P 30/Fps image output;
HDMI port 4K, 1080P video recording, 60MP Pictures were taken;
48MP photos, JPG format, photo size ;
1-4X Electronic zoom function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G, adjustable;
Provide 32 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Support TF card storage, up to 128GB;
Support remote control operation, take pictures without shaking and the image will be clearer;
Support Chinese, Traditional Chinese, English, French, German, Spanish, Portuguese, Japanese, Russian, Arabic menu languages;
Aluminum alloy casing processed by CNC precision milling technology;
Note: HDMI port output uses HDMI monitor,USB port uses PC, PC needs to install software, VGA port output uses VGA monitor, TF card interface, the function is to store pictures and videos, U disk interface, the function is to store pictures and videos!
Feature:
Output Interface:HDMI USB two output
Sensor:Sony 1/2.33 Inch CMOS Sensor
Housing:Aluminum Alloy
Pixel Size:1.65um*1.65um
Image Resolution:48MP/4K/1080P/720P(Use TF card)
Video Display:HDMI Monitor or USB PC
Video Record Resolution:4K/3840x2160@30FPS 1080p/1920x1080@60FPS 720p/1280x720@60FPS(Use TF card)
USB2.0(Drivefree) Record Resolution:1920*1080@30FPS/1280*720@30FPS/640*480@30FPS
HDMI Video Resolution:1920*1080@60F/S 3840x2160@30F/S 1280x720@60F/S
HDMI Scale:Support 4:3,16:9,16:10,Screen
Image and Video Storage:Support
Image and Video Playback:Support
Exposure:Auto Exposure and Manual Exposure(AE value set 0-12)
TF Card Flash Drive:MAX 128GB
Digital Zoom:1-4X
Video Format:MP4
Image Format:JPG
Camera Interface Mounting Diameter:25mm
Camera Interface Standard:C Mount
Lens Interface:25mm C/CS mount
White balance:One key white balance,Manual balance
Color:Black and White/Color
Dynamic Range:69dB
S/N Radio:40dB
Scanning Mode:Progressive
Shutter Mode:Electronic Shutter
Negative:Support
Contrast:1-100,Adjustable
Saturation:1-100,Adjustable
Sharpness:1-100,Adjustable
Mirror:Horizontal Mirror and Vertical Mirror
B&W Pictures:Support
Image Freezing:Support
R.G.B Adjustment:Support
Avoid Flicker:50Hz 60Hz
TF Card Formatting:Support
Support Languages:Chinese, Traditional Chinese, English, French, German, Spanish, Portuguese, Japanese, Russian, ArabicGerman, Italian, Japanese, Russian
Remote:Infrared Remote Control
Cross Lines:4 Group ,32 Lines.Can set color& width& position,direction
Crosshair:Can adjust color, line size
Power:DC 12V/1A
Package includes:
1 x Microscope Camera
1 x 12V/1A DC Power Supply(EU/US Adapter)
1 x USB Cable
1 x HDMI Cable
1 x IR Remote Control
1 x 8G TF Card
