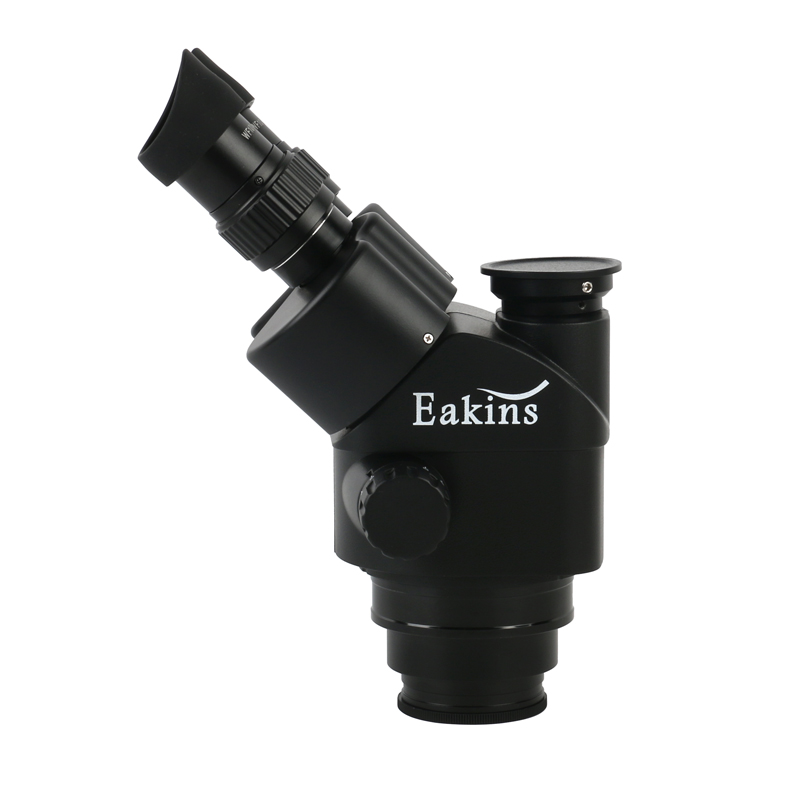

- 7X-45X Trinocular Microscope
- 【Brief】：0.7-4.5X continuous zoom, standard working distance 100mm, optional auxiliary objective lens of different magnification
- 【Series】：Binocular Trinocular
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8 inch to 3 inch(54-76mm)
Field of View: 1-1/4 inch (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3 inch (76mm) diameter
Accessory Mounting Size: 1-7/8 inch (48mm female thread) diameter
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8 inch to 3 inch(54-76mm)
Field of View: 1-1/4 inch (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3 inch (76mm) diameter
Accessory Mounting Size: 1-7/8 inch (48mm female thread) diameter
