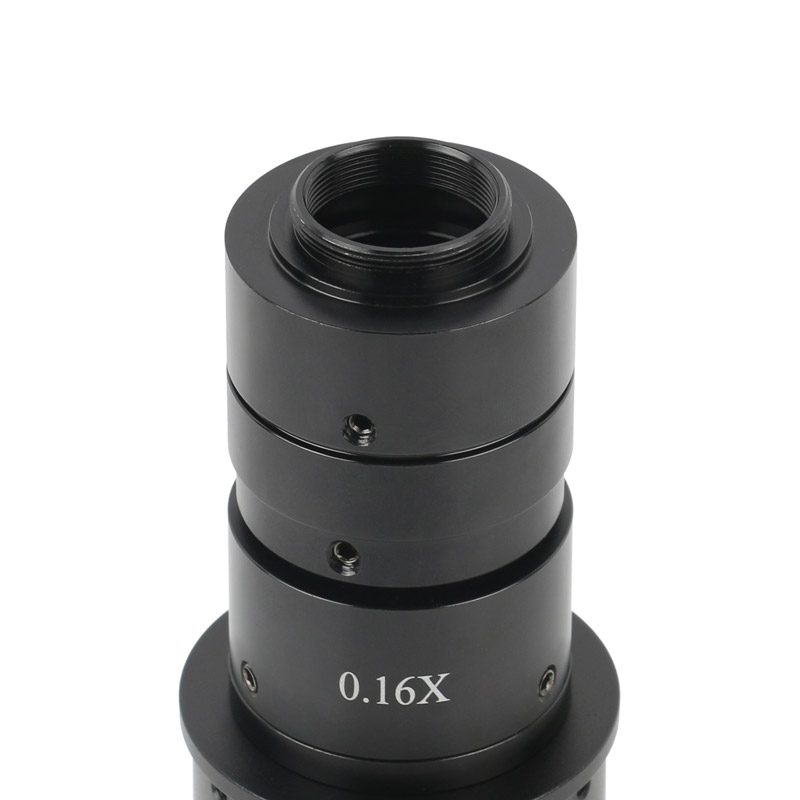

- 80X Monocular lens
- 【Brief】：0.7-4.5X magnification, standard C interface, can be matched with ring light source
- 【Series】：Monocular Lens
Optical magnification: 0.12-0.8X
Magnification: 0.12X - 0.8X (about 12-80X on monitor)
Objective Magnification: 0.7X - 4.5X
Field of view: 53.3×40 ～ 8×6
Working distance: 220mm
NA: 0.007 0.013 0.022
Resolution: 48μm 25.8μm 15μm
Depth of Field: 47.6mm 10.2mm 2.2mm
Distortion: 0.78% 0.1% 0.3%
Maximum Compatible Camera: 1/2″CCD
Interface: CS C bayonet
Fixed position: 50mm
Magnification: 0.12X - 0.8X (about 12-80X on monitor)
Objective Magnification: 0.7X - 4.5X
Field of view: 53.3×40 ～ 8×6
Working distance: 220mm
NA: 0.007 0.013 0.022
Resolution: 48μm 25.8μm 15μm
Depth of Field: 47.6mm 10.2mm 2.2mm
Distortion: 0.78% 0.1% 0.3%
Maximum Compatible Camera: 1/2″CCD
Interface: CS C bayonet
Fixed position: 50mm
