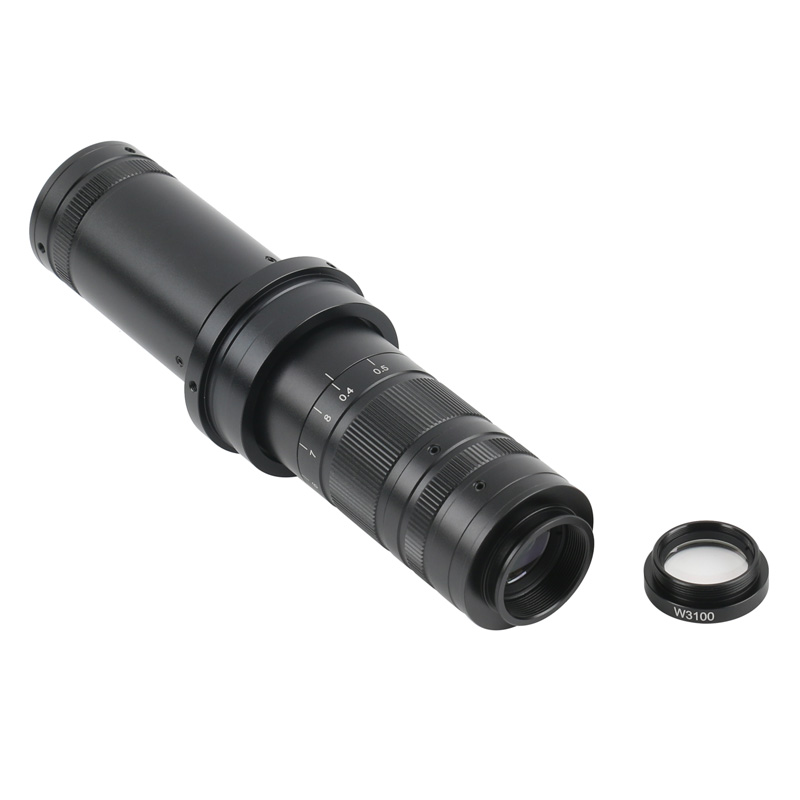

- 10X-800X Monocular lens
- 【Brief】：0.4-8.0X magnification, standard C interface, can be matched with ring light source, Optional 0.5X, 0.75X, 1X objective lens
- 【Series】：Monocular Lens
Features:
1.With 0.4X~8.0X zoom range, 20X zoom ratio
2. Larger NA: 0.01-0.12 (When using 1.00x Auxiliary Lens)
3. Higher resolution: 27.5um-2.3um (When using 1.00x Auxiliary Lens)
4. Larger field of view: 1.5mm-60mm (Object plane)
5. Larger sensor size: 2/3” (When using 1.00x TV Lens)
6. Working distance range: 86mm-174mm
7. With adjustable BFL, parfocal in zoom range
8. With adjustable center, the image center remains unchanged from 8.0x to 0.4x
9. Compatible with infinity objectives (both biological and metallographic)
10. Compact size: 194 mm (length) × 40 mm (diameter)
11. Auxiliary Lens with 0.50x, 0.75x, 1.00x magnification (Optional)
12. TV Lens with 0.50x, 0.75x, 1.00x magnification (Optional)
13. 50mm Bracket Adapter
The 10X-800X single-tube continuous zoom lens adopts the design concept of double-ended parallel optical path modularization, with superior optical performance and strong optionality. Designed for machine vision inspection, industrial inspection, scientific Designed for applications in research and education.
1.With 0.4X~8.0X zoom range, 20X zoom ratio
2. Larger NA: 0.01-0.12 (When using 1.00x Auxiliary Lens)
3. Higher resolution: 27.5um-2.3um (When using 1.00x Auxiliary Lens)
4. Larger field of view: 1.5mm-60mm (Object plane)
5. Larger sensor size: 2/3” (When using 1.00x TV Lens)
6. Working distance range: 86mm-174mm
7. With adjustable BFL, parfocal in zoom range
8. With adjustable center, the image center remains unchanged from 8.0x to 0.4x
9. Compatible with infinity objectives (both biological and metallographic)
10. Compact size: 194 mm (length) × 40 mm (diameter)
11. Auxiliary Lens with 0.50x, 0.75x, 1.00x magnification (Optional)
12. TV Lens with 0.50x, 0.75x, 1.00x magnification (Optional)
13. 50mm Bracket Adapter
The 10X-800X single-tube continuous zoom lens adopts the design concept of double-ended parallel optical path modularization, with superior optical performance and strong optionality. Designed for machine vision inspection, industrial inspection, scientific Designed for applications in research and education.
